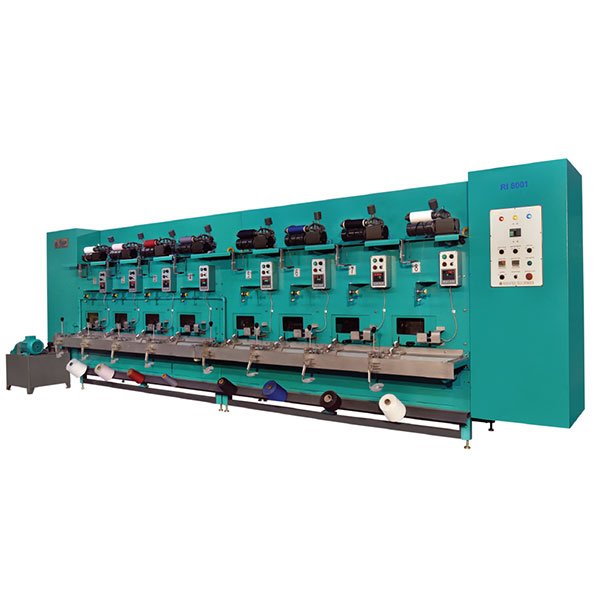

SINGLE END SIZING MACHINE MODEL RI 8001

The Single End Sizing Machine RI 8001 is designed to enhance sampling efficiency in weaving processes by combining coating (sizing), drying, and continuous winding on individual spindles. It ensures high-quality yarn preparation, contributing to smoother weaving operations and quicker sample production.

SINGLE END SIZING MACHINE MODEL RI 8001

Overview:
The Single End Sizing Machine RI 8001 is designed to enhance sampling efficiency in weaving processes by combining coating (sizing), drying, and continuous winding on individual spindles. It ensures high-quality yarn preparation, contributing to smoother weaving operations and quicker sample production.

Key Features

Available in 4/8/12 spindle configurations with individual spindle-driven operation.
Handles yarn counts between 10s to 120s Ne and 40 to 500 denier.
Winding speeds up to 250 meters/min, depending on yarn quality.
Ergonomic design for easy yarn passage with no excess tension.
Equipped with grooved drum/yarn traverse systems for polyester yarn and an advanced length measuring system.
Uniform drying through an electrical heating system with a temperature controller and air circulation fan.
Capability to handle different dyed shades with provisions for individual or multi-spindle size trays.
Special sponge pads ensure even size application on the yarn.
Stainless steel (SS) size tank with temperature control and circulation through an SS pump for consistency.
Motors driven by AC inverters with adjustable speed.

Technical Specifications

Feature	Details
No. of Spindles	4/8/12
Machine Type	Individual spindle-driven
Skeleton Winder Motor	Controlled by individual AC motor
Package Winding Motor	Controlled by individual AC motor
Winding Speed	0-250 meters/min (depends on yarn type)
Yarn Count	10-120 Ne / 40-500 denier
Drying	Electrical heating
Temperature Control	40-60°C (depends on yarn type)
Stop Motion	Individual sensor for broken ends
Sizing Solution Tank	SS fabricated
Sizing Solution Circulation	Pump-provided
Hot Air Circulation	Blower motor for uniform drying chamber temperature
Length Meter	Individual monitor control
Winding Type	Parallel/Conical (5.7′)
Length Measurement	Electrical counter meter

Additional Features

Size Tray:
SS fabricated size tank, offering both common and individual spindle size tray options with a yarn dipping arrangement.
Common Size Circulation Tank:
Equipped with an SS tank and motor for consistent size liquid circulation.
Yarn Tensioners:
Disk & spring-type tensioners maintain consistent yarn tension throughout the winding process.
Length Meter:
Individual length meters for each spindle, synchronized with machine operations, with Start/Stop and speed control buttons.
Winding Mechanism:
Surface-driven mechanism with an overweight system ensures continuous, even winding while maintaining proper tension.
Safety Sensor:
Sensors detect yarn breakage, indicate issues with a light signal, and stop the affected spindle immediately.
Drying Chamber:
- Front View: Sliding door for temperature control and safety.
- Rear View: Rear opening for easy cleaning and maintenance of the skeleton and belt.

Product Highlights

Ensures the production of high-quality, sized yarn for smooth weaving operations.
User-friendly design and advanced automation reduce manual intervention.
Individual spindle control allows flexible sampling for various shades and types of yarn.
Durable SS tanks and sponge pads optimize the sizing process.
Compact and efficient, suitable for both small and large weaving units.
