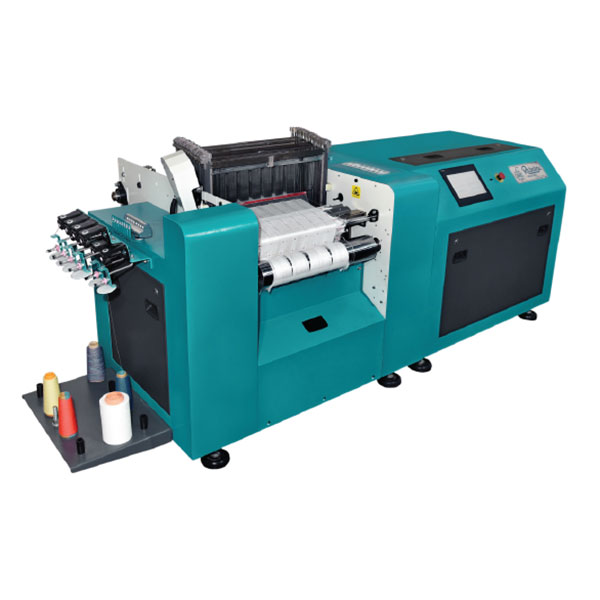

The Sample Rapier Weaving Machine RI 9001 by Rabatex Industries offers state-of-the-art technology designed to bridge the gap between perfect fabric sampling and user-friendly operation. Its innovative design enables the creation of diverse and complex fabric samples, accommodating various yarns with precision and ease.

Product Details

SAMPLE RAPIER WEAVING MACHINE MODEL RI 9001

The Sample Rapier Weaving Machine RI 9001 by Rabatex Industries offers state-of-the-art technology designed to bridge the gap between perfect fabric sampling and user-friendly operation. Its innovative design enables the creation of diverse and complex fabric samples, accommodating various yarns with precision and ease.

Key Features

  • Advanced Beat-Up Mechanism:
    Driven by an independent servo motor with adjustable speed and timing via a control panel. Includes manual forward/reverse reed motion.
  • Efficient Shedding Mechanism:
    Equipped with 20 or 24 shafts for smooth operation, utilizing pneumatic equipment for quick loading/unloading of heald frames.
  • Weft Insertion:
    Rigid single rapier weft insertion with servo mechanism ensures precision.
  • Customizable Weft Selection:
    Simplified computational weft selection system supports a variety of fabric patterns and color combinations.
  • Algorithmic Warp Tension Control:
    Provides consistent warp sheet tension during weaving, utilizing a stepper motor and load cell. Twin beam support is optional.
  • Variable Weft Density:
    Electronic take-up motion allows for programmable weft density variation within a single weave repeat.
  • Integrated Stationary Creel:
    Ensures smooth yarn feeding and operation.
  • Optional Features:
    • Yarn Cutter
    • Auxiliary Selvedge Cutter
    • Fabric template mounting system

Technical Specifications

Parameter Specification
Working Width 500 mm
Machine Speed 45 ppm maximum (higher on request)
Beat-Up Drive Independent servo motor
Shedding 20/24 heald frames (electronically driven)
Let-Off Electronically controlled (up to 4 units optional)
Take-Up Electronically controlled, variable density
Weft Selector Supports up to 8 colors
Weft Insertion Rigid single rapier
Break Sensors Optional warp and weft break sensors

Accessories

  • Drawing-in Stand Carrier:
    For warp sheet threading from the beam to heald frames and reed.
  • Warp Beam & Reed Storage Carrier:
    Designed for storing warp beams and weaving machine reeds.
  • Warp Beam Carrier with Heald Frame Support:
    Enables easy lifting, transport, and fitting of drawn warp beams onto the weaving machine. Includes harness holders.

Layout Dimensions

Specification Value (mm)
Working Width 500
Length 2850
Width 1050
Height 1400

Highlights

  • Perfectly suited for creating intricate fabric samples across infinite design possibilities.
  • User-friendly and highly customizable to accommodate various yarn types and weaving patterns.
  • Provides consistent and precise fabric sampling results, ensuring high-quality outputs for research and development needs.
