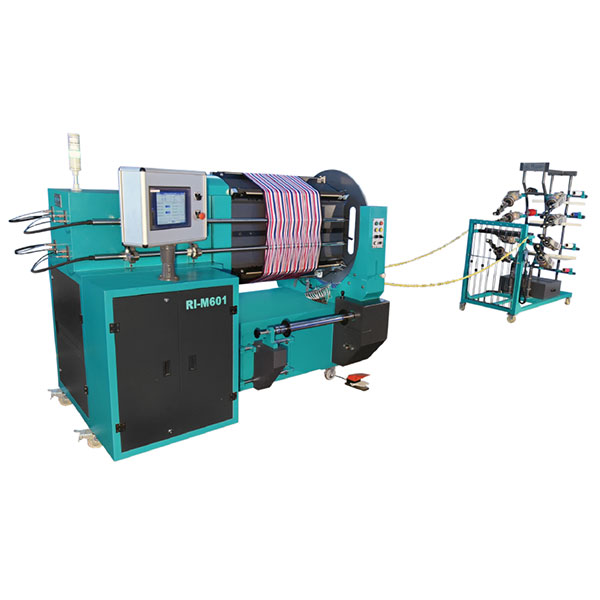

MINI SAMPLE WARPER MODEL RI M 601

MINI SAMPLE WARPER MODEL RI M 601

The Mini Sample Warper RI M 601 has been designed to meet the needs of the highly competitive global textile market. It is ideal for segments like yarn-dyed shirting, suitings, furnishing, and technical textiles that require quick sample production with minimal material. This machine is specifically developed for creating short-run warp beams and can handle various warping widths. It operates with a user-friendly, compact, integrated stationary creel, requiring only one bobbin for each color, eliminating the hassle of using numerous yarn bobbins.

Product Details

MINI SAMPLE WARPER MODEL RI M 601

Overview

The Mini Sample Warper RI M 601 has been designed to meet the needs of the highly competitive global textile market. It is ideal for segments like yarn-dyed shirting, suitings, furnishing, and technical textiles that require quick sample production with minimal material. This machine is specifically developed for creating short-run warp beams and can handle various warping widths. It operates with a user-friendly, compact, integrated stationary creel, requiring only one bobbin for each color, eliminating the hassle of using numerous yarn bobbins.

Key Features

  • Belt Shifting: Fully automated to match different density warp preparation requirements, controlled by an advanced motion controller and servo drive.
  • Leasing Capability: Offers two pneumatically operated leases with 1 cross and 1 cut lease for subsequent operations like knotting and drawing.
  • HMI (Human-Machine Interface): Advanced touch screen for easy operation, real-time data display, and troubleshooting.
  • Automatic Colour Changing Device: Efficient and quick color selection changeover with advanced software optimization.
  • Integrated Beaming Device: Integrated with the machine to minimize space, driven by an inverter-driven geared motor with adjustable warp tension.
  • Stationary Creel: Combines accumulators, tensioners, and stop-motion features for improved yarn feeding and speed control.
  • Electronic Stop Motion: Self-activation of yarn stop motion with clear signaling for yarn breakage and automatic machine stop.

Technical Specifications

Feature Specification
Drum Circumference 2500 mm
Warp Width 500 mm (50 cm / 19.5 inch)
Warping Length 5-30 m (Depends on Warp Material)
Yarn Range 5-500 Tex
Warping Speed 300 mtr/min
Beaming Speed 10 mtr/min
No. of Colour Feeder 8
Max. Beam Flange Dia. 100 mm
Package Selection Automatic by Controller
Pattern Selection Automatic by Controller
Belt Drive Yes
Beaming Tension Through Servo Drive
Creel Type Stationary
Belt Traverse Yarn Selector Pneumatically Operated

Optional Accessories

  • Accumulator with Control Panel: For stationary creel with accumulators and control panel (IRO ROJ – Italy make).
  • User-Friendly Programmable Pattern Entry: Pre-programmable warp patterns for unlimited warp designs, precise response control for thread pick-up and change speeds.

Layout Dimensions

No. Working Width Length Width Height
1 500 mm 5110 mm 1580 mm 1980 mm
